| | OSMAS3 Trimmer Machines
|
All
carry "CE" mark.
|
|
RAS / 6P-Ev |
|
|
Continuous cycle trimming-flagging machine complete with: 6 pneumatic
clamps, 1 clipper, or frontal knife, 2 flagging units
and 1 trimming unit electronically
moved by axes.
1 beating unit adaptable to the shape of the items and upon request, 1 bristle
separator.
Computer with keyboard and display
featuring 100 programs storing
capacity.
Adjustable rotation speed by means of
an inverter.
Vacuum for the dusts.
Performance:
-
Maximum production capacity 600
pieces/hour.
-
Max. trimming lenght 420 mm. (16,5")
-
Max. trimming width 100 mm. (3,5")
-
Dimensions: 1180x2080x1880
mm (46,5"x82"x74").
-
Weight: 1200 Kg. (2.645 lbs)
-
Air consumption: 5 - 6 nl/min. at 6 bar
-
Max. power 6Kw.
|
 |
|
RAS / 6P-C |
|
|
Continuous cycle trimming-flagging machine complete with four cam operated tools:
6 pneumatic
clamps, 1 clipper, or frontal knife, 2 flagging
units, 1 trimming unit and 1 beating unit
adaptable to the shape of the items and upon
request, 1 bristle separator.
Adjustable rotation speed by means of
an inverter.
Vacuum for the dusts.
Performance:
-
Maximum production capacity 600
pieces/hour.
-
Max. trimming lenght 420 mm. (16,5")
-
Max. trimming width 100 mm. (3,5")
-
Dimensions: 1180x2080x1880
mm (46,5"x82"x74").
-
Weight: 1200 Kg. (2.645 lbs)
-
Air consumption: 5 - 6 nl/min. at 6 bar
-
Max. power 6Kw.
|
 |
|
GEMINI |
|
|
New design trimming machine studied for finishing every kind of round and half round
head brush, only replacing the two clamping tools.
Machine complete with two clamping
units, two adjustable cutting units, vacuum
for the dusts, and protection covers to ensure maximum operator safety.
Machine available in
two versions:
VERS.1 to trim round toilet brushes,
flat head baby-bottle brushes, beer-glass washing brushes and half-round-head dish washing
brushes.
VERS.2 to trim flat and curved
dish-washing brushes, long handle SS brushes, cone-shaped toilet brushes and round tank
brushes.
Production capacity while trimming toilet
brushes 360pcs/hour.
|
 |
|

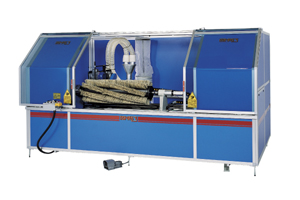

RAS / 1R |
|
|
Single station trimming
and cleaning machine for cylindrical brushes,
-
Equipped with a single cutting head with carbide blades, single
cleaning head and self centering chuck and adjustable tail stock.
-
Adjustable traverse and rotational speeds (via inverter) complete with
powerful dust collector unit.
-
Max. cylinder
length 1,500 mm. (59")
|
 |
|
RAS / 2PO.EV610 |
|
Automatic horizontal trimming-flagging machine, with two self-centring brush-holder clamps, for finishing American
style industrial brushes with lengths up to 1220 mm. (48") and angle brooms.
Maximum fiber height 200 mm. (8")Maximum production capacity 300
pieces/hour.
|
 |
|
RAS / 1MPB |
|
Manual trimming-flagging machine for finishing brushes and brooms of all types,complete with suction unit. |
 |
|
RAS / 1A |
|
|
Vertical trimming machine complete with 1 holding clamp.
Double flat trimming by means of 1clipper and
1 trimming head.
Clamps moving
speed adjustable through inverter.
Performance:
Maximum production capacity 250 pieces/hour.Max. trimming lenght 400 mm. (16,5")Max. trimming width 140 mm. (3,5")
|
 |
|
MILO |
|
Automatic trimming machine for round or flat hairbrushes complete with heating unit for automatic shaping of
plastic filament's edge.
|
 |
|
|
|
