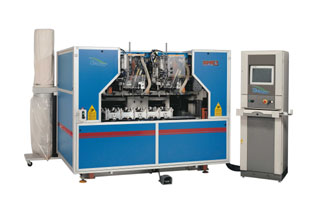

INNOVATIVE fully automatic all-in-one filling and trimming machine for the production of brushes and brooms.

Highlights
Raised autonomy without the intervention of the operator.
Raised production capacity.
Easy and fast model changeover.
Raised comfortable access to all the parts that need maintenance works.

Technical features
New concept three station carousel.
Double channel loading unit of the blocks, enabling a very high flexibility in the colors mix of blocks/fiber.
Two filling tools assembled in modules to guarantee stability and low noise.
Two drills featuring an adjustable frequency drive for speed variation.
3 or 4 axis drive system using electric servo-actuators and brushless motors.
Osmas3 PC with PENTIUM processor, equipped with LCD liquid cristals TFT 12" color display and touch screen resistive type.
Windows 98 operating system.
SELF-DIAGNOSIS function to signal malfunction on the display and guides the operator in rapid troubleshooting procedures.
Max. fiber length 270 mm. (11") and
Max. filling speed 980 tufts/minute.




New style, new concept filling machine for the production of all kinds of household brushes and brooms.

Highlights
Amazingly competitive price.
Raised versatility for multiple production.
Innovative production process.
Easy and fast model changeover.

Technical features
Two filling tools and three drills.
3, 4 or 5 axis drive system using electric servo-actuators and brushless motors.
Personal computer featuring: 15" color screen, 3 1/2" floppy disc drive, CD-ROM, keyboard and mouse, "teach-in function" Windows 98 operating system.
Lifting-upward fiber boxes complete with pneumatic fiber beater.
Vacuum system for chips.
Centralized lubrication controlled by the computer.

Performance
Max. fiber length 270 mm. (11") and
420 mm. (17") with the long stroke machine.
Max. filling speed 800 tufts/minute and 600 tufts/minute with long stroke machine.




Automatic filling machine, with one filling tool and two drills.

3, 4 or 5 axis drive system using new generation electric servo-actuators and brushless motors.

Maximum fiber length 270 mm. (11") and 420 mm. (16") with long stroke machine.

Maximum filling speed 400 tufts/minute granted in excellent working conditions.


Automatic filling machine, with two filling tools and three drills.

3, 4 or 5 axis drive system using new generation electric servo-actuators and brushless motors.

Maximum fiber length 270 mm. (11") and 420 mm. (17") with long stroke machine.

Maximum filling speed 800 tufts/minute granted in excellent  working conditions.


Semi-robotic filling machine with two filling tools, two drills and three positions turntable carriage.

3 or 4 axis drive system using new generation electric servo-actuators  and brushless motors.

Maximum fiber length 270 mm.  (11")

Maximum filling speed 900 tufts/minute granted in excellent working conditions.


Automatic, continuous cycle twisting machine.

The steel wire, which the machine processes, may be normal, plastic coated or stainless steel.

The fiber may be synthetic, vegetable, natural, brass or bronze.

The Maximum brush length is 1000 mm (40").

Maximum twisting speed 6,5 meter/minute.
