Borghi Spa / Italy

Borghi Spa is located in Italy and specialized to produce machines for household brushes and brooms aswell as machines for technical and industrial brushes.

Thanks to their constant investments in Reseach and Development, they present the highest technology in the field of tufting and trimming machines.

Having the mission to be an essential partner to our clients by building a strong and trust-based relationship, they try to create first the trust and a rational and emotional bond that's difficult to break.

Borghi wants to give our customers the technology tools as well as the training and support to thrive in a challenging, fun and creative environment.





STAR-R32

Automatic horizontal, turret style filling machine Mod. STAR-R32 for the production of all kinds of brushes and brooms. By changing specific equipment this machine can produce a wide range of models with different filling angles.

Production: 1000 tufts/minute (800 tufts/min with 85 mm stroke)
Power Draw: 19 KW
Compressed Air Pressure: 7 bar (110 PSI)
Overall Dimensions L x W x H: 3100 x 2500 x 2100 mm (Approx. 123 x 100 x 84)
Weight: 3000 Kg (approx. 6600 Lbs.)













SMART-R32

Automatic horizontal, turret style filling machine
Model SMART-R32 for the production of all kinds of brushes and brooms filled with radial tufts.
Machine strokes available as follows:
Stroke 60 mm to work fibers with a maximum
length of 240 mm.
Stroke 85 mm to work fibers with a maximum
length of 300 mm.
Stroke 135 mm to work fibers with a maximum
length of 400 mm.

Production: 1000 tufts/minute (800 tufts/min with 85 mm stroke)
Power Draw: 19 KW
Compressed Air Pressure: 7 bar (110 PSI)
Overall Dimensions L x W x H: 1.800 x 3.400x 2.066 mm (Approx. 71 x 134 x 81)
Weight: 2.850 Kg (approx. 6,300 Lbs.)

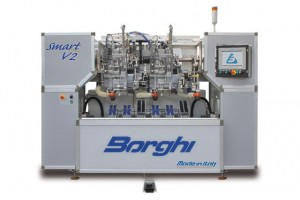

SMART-V2

Automatic continuous cycle drilling and filling machine Mod. SMART-V2 complete with 2 filling-tools and 3 drills for the production of brushes and brooms.

Maximum production speed: up to 400 RPM (800 tufts per minute)
Centralized an automatic lubrication system.
Mean acoustic pressure 74.8 dB(A).
Absorbed power 12,5Kw.
Air consumption 20 NL/min.
Overall dimensions (L x W x H): 2380 x 2750 x 2690 mm (approx. 94 x 109 x 106).
Weight Kg. 3300 (approx. 7300 Lbs.)

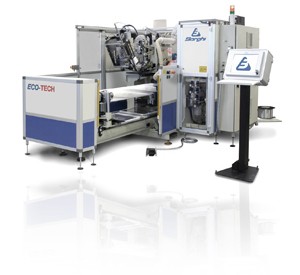

ECO-TECH

Semi-continuous Vertical, Drilling and Filling machine model ECO-TECH for the production of industrial cylinder brushes, lag brushes and disc brushes.

Production Capacity: Filling speed 350 tufts/minute
Drilling speed 450 holes/minute
Compressed air pressure: 7 bar 100 (PSI)
Power draw: 9 Kw.
Overall dimensions:4300 x 2625 x 2900 mm (169 X 103 X 114)
Weight: 2200 Kgs.

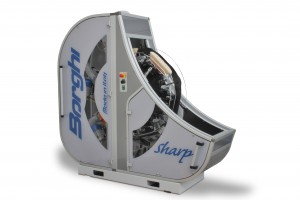

SHARP6

The Model SHARP6 continuous cycle trimmer/flagger is used to trim, flag and finish a vast range of brushes and brooms.

Production capacity: from a minimum of 300, up to 700 pieces/hour
Compressed air pressure : 6 bar (90 PSI)
Power draw: 2,75 kw
Overall dimensions: 1600x900x1800 mm (63 x 36 x 71)
Weight: 700 kgs (1540 Lbs.)

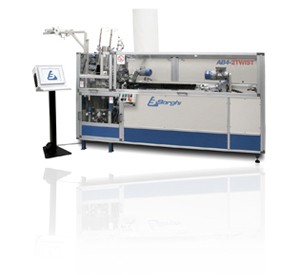

AB4 - 2TWIST

Continuos cycle twisting machine Mod. AB4-2TWIST for manufacturing twisted-in-wire brushes and plastified wire brushes with adjustable section from 0,8 to 3,5 mm.

The average production is: 3,5 meters per minute
Power draw: 4,5 Kw
Compressed air pressure: 7 bar (101,53 psi)
Overall dimensions: 4500x2900x3000h mm (179x115x119)
Weight: 1000 Kg (2210 lbs)

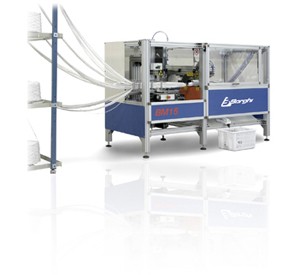

BM15-20

Semi-automatic machine Mod. BM15-20 for the assembly of mops made of both cotton and synthetic material.

Production capacity per hour (continuous cycle): 600 mops (BM15) - 1200 mops (BM20)
Power consumption: 1,75 Kw (BM15) - 2,75 Kw (BM20)
Overall dimension: 3100 x 1100 x 2000 mm
Weight: Kg. 750 (BM15) Kg. 950 (BM20)












Click here to visit the official web page of Borghi Spa for detailed information or see official video.
